👕 BeyondTee - Next-Gen 3D Custom Apparel Platform

[](https://nextjs.org/) [](https://nestjs.com/) [](https://threejs.org/) [](https://www.prisma.io/) [](https://tailwindcss.com/) [](https://www.docker.com/) **BeyondTee** is a premium, production-ready full-stack e-commerce solution that empowers users to customize casual wear (T-shirts, hoodies, and more) in an immersive, real-time 3D editor. Built with a robust monorepo architecture leveraging Next.js, NestJS, and Three.js. [🚀 Deployment Guide](#-deployment--hosting)

---

🔮 Key Features

🛍️ Client & 3D Customizer

• Immersive 3D Customizer Studio: Real-time interactive 3D apparel editor using React Three Fiber. Users can rotate, zoom, and decorate custom models (T-shirts, hoodies) dynamically.
• Smart Layering Engine: Add multiple decorative decals, custom typography, change colors, and scale/reposition layers on the fly.
• Premium E-Commerce Flow: Intelligent search and filter sidebar (by Fit, Collection, Gender), seamless cart management, secure checkout, and real-time public order tracking.
• Vibrant User Experience: Enhanced UI with custom cursors, scroll reveal animations, glassmorphism elements, and fully responsive layouts.

🏢 Operations & Admin Panel

• Live Analytics Dashboard: Real-time telemetry tracking gross revenue, orders, stock levels, and user registration analytics.
• Order & Logistics Manager: Granular order tracking where admins can view specific 3D custom design configurations, transaction receipts, and customer details.
• Marketing Engine: Easily create, validate, and manage promotional coupon codes (percentage discount or flat-rate deductions).
• Client-Side Security: Integrated Next-Auth credential check paired with NestJS JWT guards to enforce secure, role-based authorization for admin layouts.

---

🖼️ Application Preview

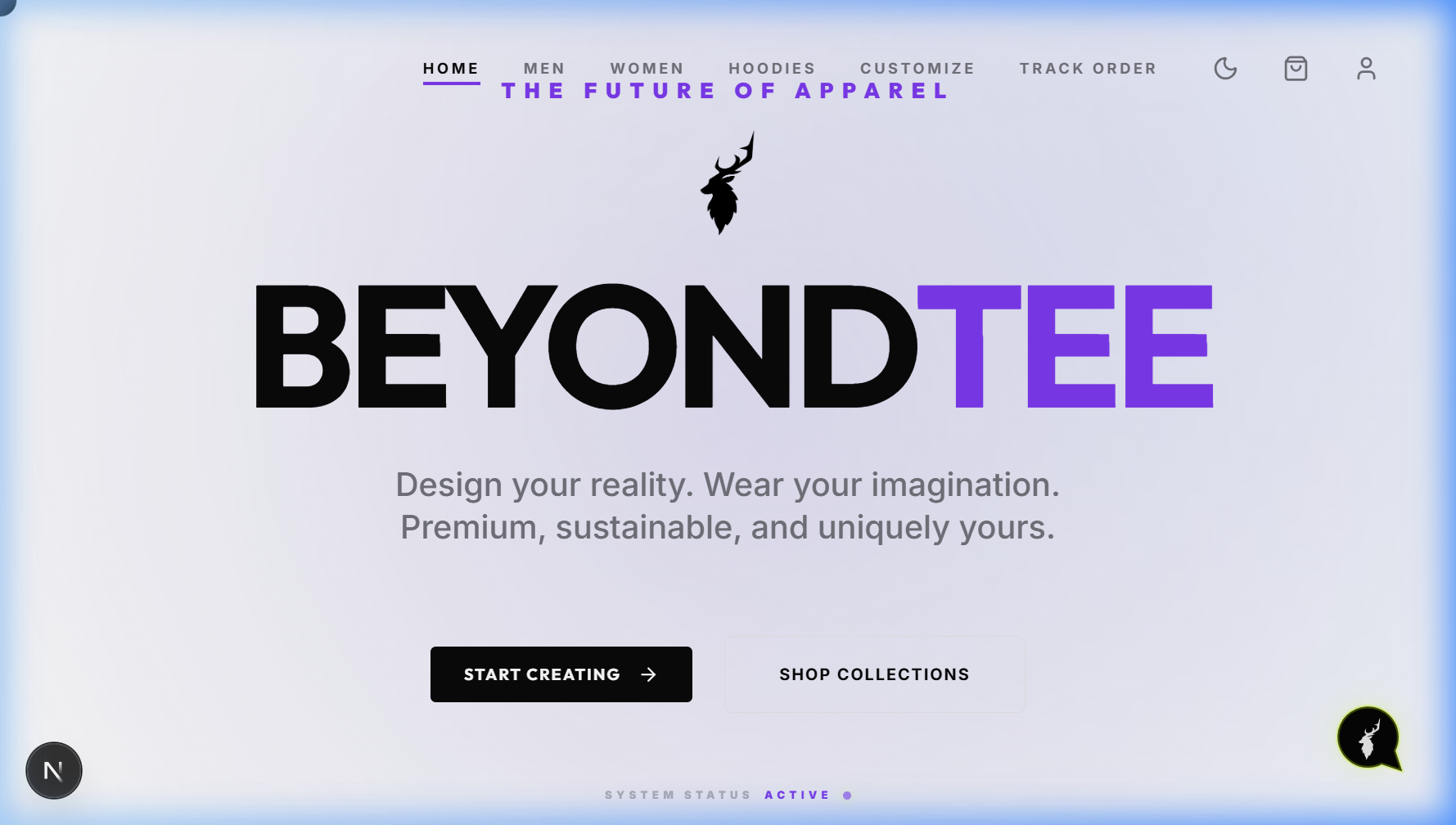

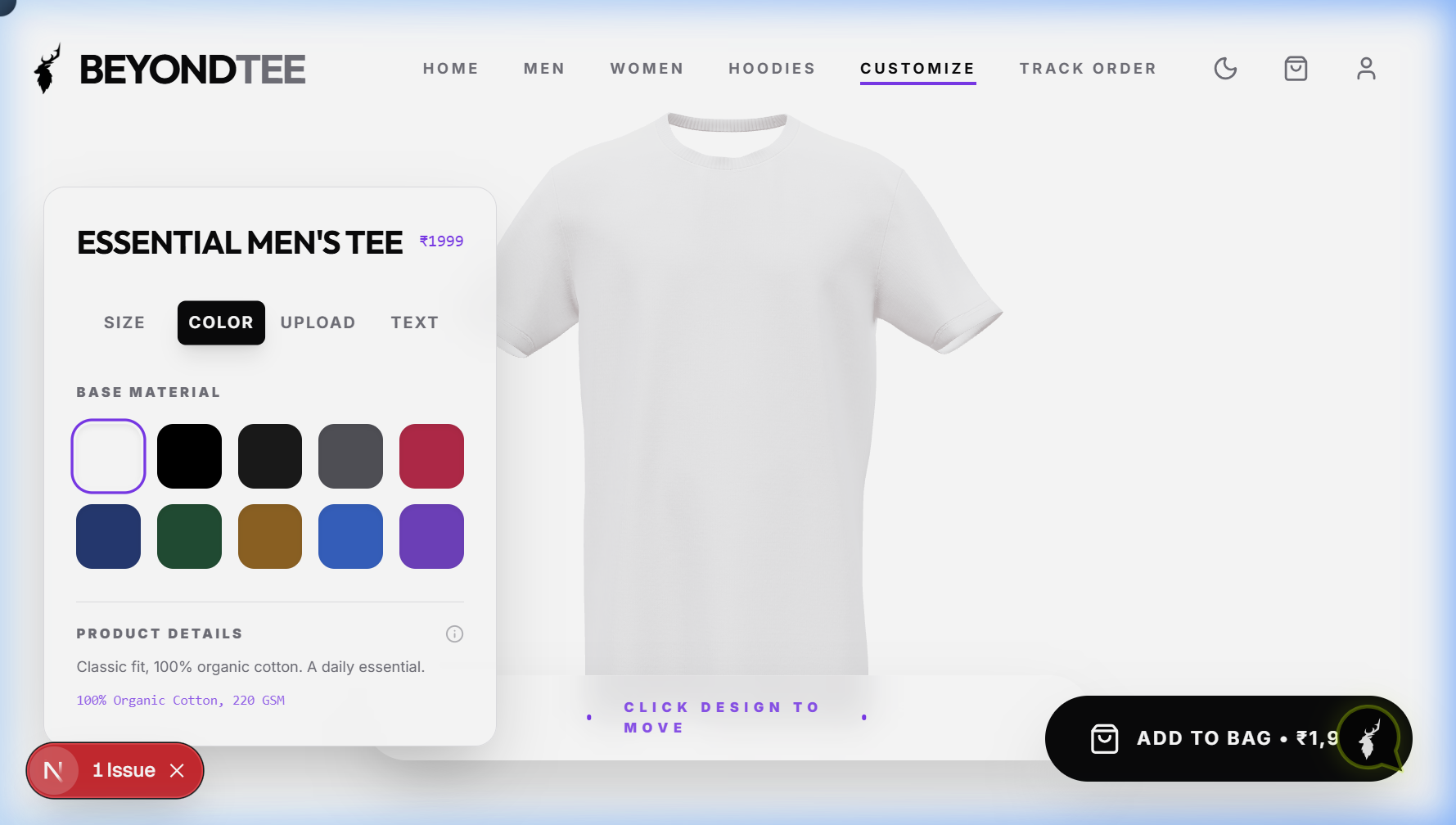

✨ Interactive Landing Page	🔮 3D Customizer Studio

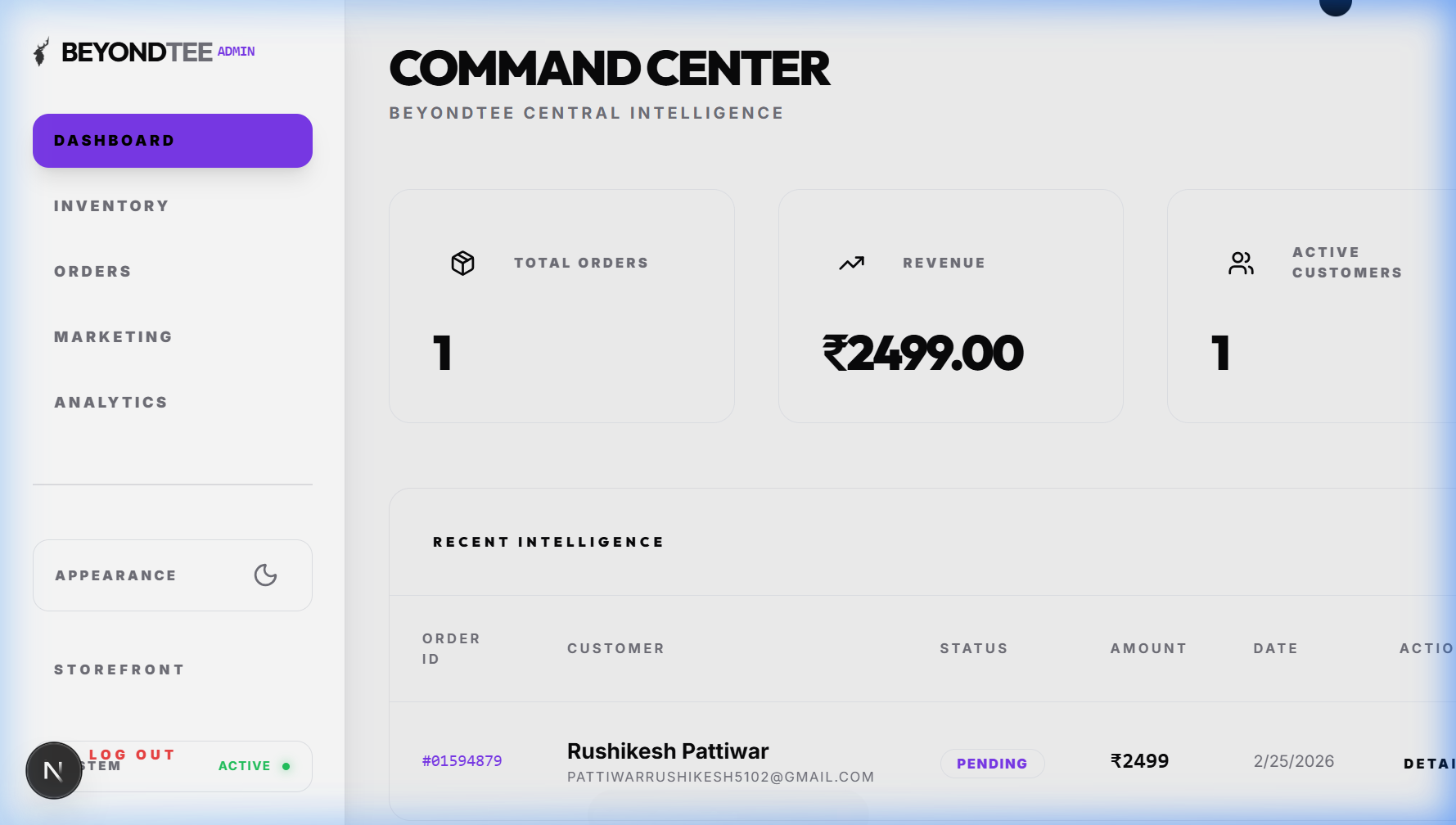

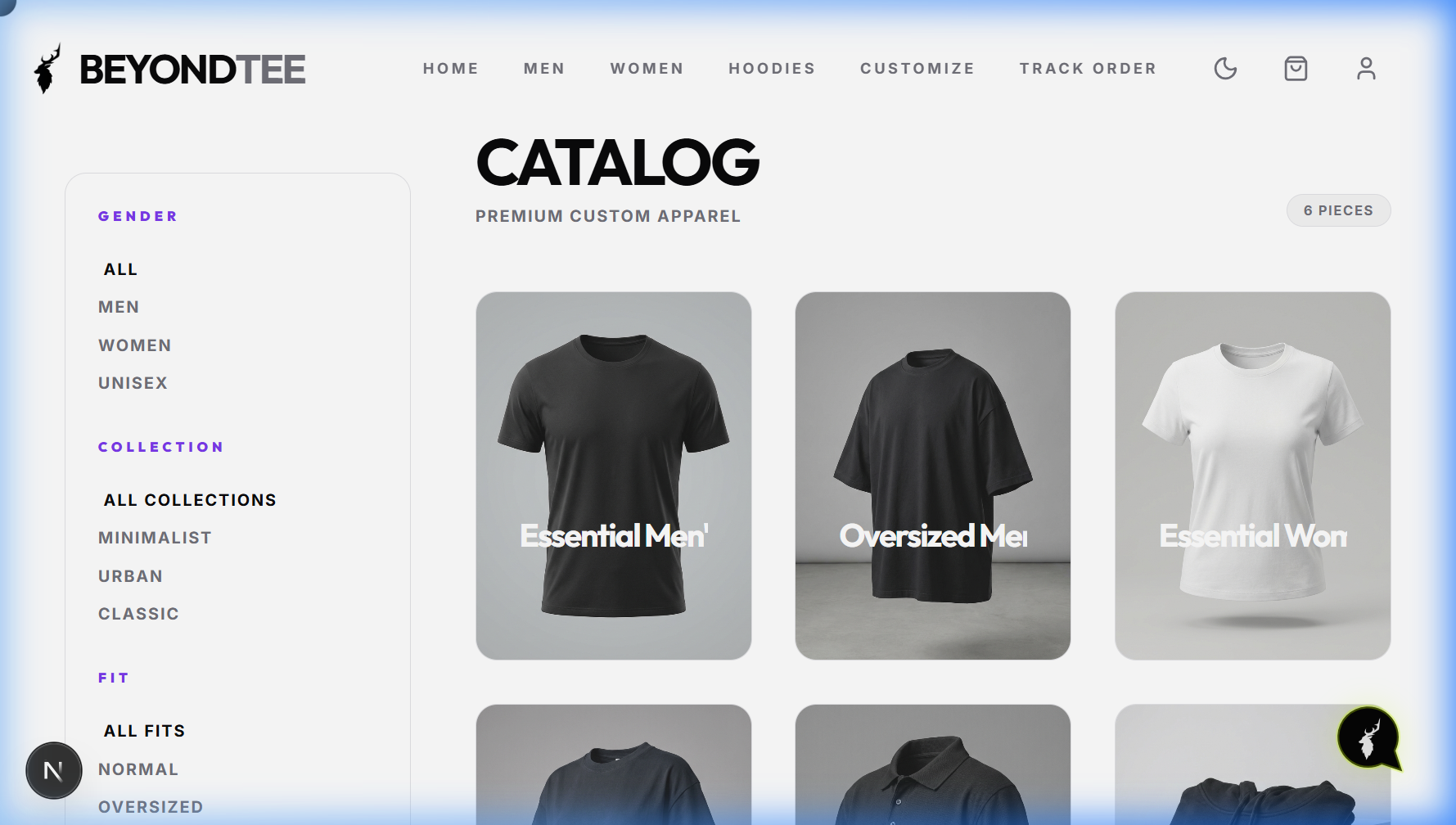

🛍️ Product Catalogue & Shop	📊 Admin Analytics Dashboard

---

🛠️ Local Development & Setup

Prerequisites

Ensure you have the following installed on your machine:

• Node.js (Version 18 or higher)
• Git
• Docker Desktop (Optional, for containerized run)

---

1. NestJS Backend Setup

Navigate into the backend workspace and spin up the development API:

# 1. Navigate to the backend directory
cd backend

# 2. Install dependencies
npm install

# 3. Setup environment variables (Create .env based on .env.example)
# Add keys for JWT, Stripe, Cloudinary, AWS S3
cp .env.example .env

# 4. Generate Prisma client & initialize database (SQLite by default)
npx prisma generate
npx prisma migrate dev --name init

# 5. Seed the product catalog
npm run prisma:seed    # Seeds the database with products and admin user

# 6. Start NestJS server in watch mode
npm run start:dev

The backend API will boot up on http://localhost:3001

---

2. Next.js Frontend Setup

Navigate to the web workspace and run the client-side server:

# 1. Navigate to the web directory
cd ../web

# 2. Install dependencies
npm install

# 3. Setup client environment variables
# Ensure NEXT_PUBLIC_API_URL points to http://localhost:3001
cp .env.local.example .env.local

# 4. Start Next.js development server
npm run dev

Open your browser and visit http://localhost:3000

---

🔐 Default Credentials

• Admin Panel Email: admin
• Admin Panel Password: admin
• Sign-in is accessible via http://localhost:3000/auth/signin

---

🚀 Deployment & Hosting

The stack is fully containerized and production-ready. You can build the stack using Docker or host it directly on a Hostinger VPS.

Option A: Quick Production Test (Docker Compose)

To run the full backend, frontend, and database locally in production containers:

1. Edit backend/prisma/schema.prisma to switch the database provider to postgresql (or use a managed PostgreSQL service).
2. Spin up the containers using the production file:

   docker-compose -f docker-compose.prod.yml up --build -d


---

Option B: Hostinger VPS Deployment (Ubuntu 22.04 / 24.04)

Deploy the system directly on a Hostinger VPS with Nginx, Nginx Proxy, and Let’s Encrypt SSL.

Step 1: Connect to Server (SSH)

Connect to your Hostinger VPS via terminal:

ssh root@YOUR_VPS_IP_ADDRESS

Step 2: Install Docker & Git

Install the application prerequisites:

# Update server
sudo apt update && sudo apt upgrade -y

# Install Git
sudo apt install git -y

# Install Docker & Docker Compose
sudo apt install docker.io docker-compose -y
sudo systemctl enable docker
sudo systemctl start docker

Step 3: Clone Code & Add Environment Config

Clone the repository and set up environment files:

cd /var/www
git clone https://github.com/Rushikesh5102/BeyondTee.git
cd BeyondTee

# Configure Backend
nano backend/.env
# (Paste database URL, Cloudinary secrets, Hostinger SMTP info. Ctrl+X, Y, Enter)

# Configure Frontend
nano web/.env.local
# (Paste production backend URL NEXT_PUBLIC_API_URL and nextauth configurations. Ctrl+X, Y, Enter)

Step 4: Run Application

Boot up the stack in detached background mode:

sudo docker-compose -f docker-compose.prod.yml up --build -d

Verify container status:

sudo docker ps

Step 5: Route Traffic & Add SSL (Nginx & Certbot)

Set up Nginx as a reverse proxy:

# Install Nginx and SSL tools
sudo apt install nginx -y
sudo apt install certbot python3-certbot-nginx -y

# Configure Nginx proxy rules
sudo nano /etc/nginx/sites-available/beyondtee

Paste this configuration (replace yourdomain.in with your domain):

server {
    server_name yourdomain.in www.yourdomain.in;

    # Route /api traffic to the NestJS Backend (Port 3001)
    location /api/ {
        proxy_pass http://localhost:3001/;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
        proxy_cache_bypass $http_upgrade;
    }

    # Route all other traffic to the Next.js Frontend (Port 3000)
    location / {
        proxy_pass http://localhost:3000;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_set_header Host $host;
        proxy_cache_bypass $http_upgrade;
    }
}

Enable the configurations and restart Nginx:

sudo ln -s /etc/nginx/sites-available/beyondtee /etc/nginx/sites-enabled/
sudo nginx -t
sudo systemctl restart nginx

Obtain a free SSL certificate for secure HTTPS:

sudo certbot --nginx -d yourdomain.in -d www.yourdomain.in

---

🏛️ Project Structure

Beyondtee/
├── backend/            # NestJS backend API
│   ├── prisma/         # Database schemas and seeds
│   ├── src/            # Core application source code
│   └── Dockerfile      # Backend deployment container
├── web/                # Next.js customizer client
│   ├── public/         # Static assets and icons
│   ├── src/            # Next.js pages & React components
│   └── Dockerfile      # Frontend deployment container
├── docs/               # Screenshots and assets
└── docker-compose.yml  # Local stack orchestration

---
